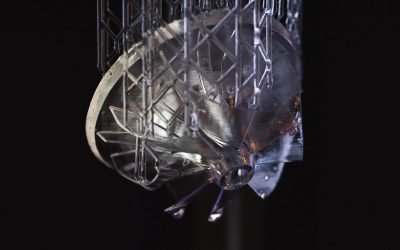

What is SLA printing? The original resin 3D print method

SLA, or stereolithography, is a widely-used 3D printing process and the most popular of the resin printing technologies. The process owes its esteem in the additive space to its ability to produce prototypes that are accurate, isotropic and watertight, as well as production parts with impressive surface smoothness and more detailed features.

Despite its host of advantages, though, it's tricky to know whether SLA will yield the best results for your specific parts. In this introduction to SLA, we cover the basic principles of the process to determine whether it's suitable for your application.

For more information on how Protolabs Network uses SLA, check out our SLA capabilities or contact networksales@protolabs.com.

What is SLA (stereolithography)?

Stereolithography (SLA) is an additive manufacturing process that belongs to the vat photopolymerization family. Also known as resin 3D printing, there are three main 3D printing technologies associated with vat polymerization: SLA, DLP and LCD. The three technologies all use a light source to cure a photopolymer resin but with the following differences:

• Stereolithography (SLA) uses UV lasers as a light source to selectively cure a polymer resin.

• Digital light processing (DLP) uses a digital projector as a UV light source to cure a layer of resin.

• Liquid crystal display (LCD) uses an LCD display module for projecting specific light patterns.

SLA is one of the most widely used vat photopolymerization technologies. It creates objects by selectively curing a polymer resin, layer by layer, using an ultraviolet (UV) laser beam. The materials used in SLA are photosensitive thermoset polymers that come in a liquid form.

Patented in 1986, SLA was the first 3D printing technology. And even today, SLA is still the most cost-effective 3D printing technology available when parts of very high accuracy or smooth surface finish are needed. The best results come when a designer takes advantage of the benefits and limitations of the manufacturing process.

Watch before you read: How to get the most out of SLA printing

Here's a short video that will teach you everything you need to know to get started with SLA 3D printing (in ten minutes or fewer).

How does SLA 3D printing work ?

1. SLA 3D printing works by first positioning the build platform in the tank of liquid photopolymer, at a distance of one layer height for the surface of the liquid.

2. A UV laser creates the next layer by selectively curing and solidifying the photopolymer resin.

3. During the solidification part of the photopolymerization process, the monomer carbon chains that compose the liquid resin are activated by the light of the UV laser and become solid, creating strong unbreakable bonds between each other.

4. The laser beam is focused in a predetermined path using a set of mirrors, called galvos. The whole cross-sectional area of the model is scanned, so the produced part is fully solid.

5. After printing, the part is in a not-fully-cured state. It requires further post-processing under UV light if very high mechanical and thermal properties are required.

The photopolymerization process is irreversible and there is no way to convert the SLA parts back to their liquid form. Heating these SLA parts will cause them to burn instead of melt. This is because the materials that are produced with SLA are made of thermoset polymers, as opposed to the thermoplastics that fused deposition modeling (FDM) uses.

What are the print parameters of SLA?

Most print parameters in SLA systems are fixed by the manufacturer and cannot be changed. The only inputs are the layer height and part orientation (the latter determines support location).

Layer height: Ranges between 25 and 100 microns. Lower layer heights capture curved geometries more accurately but increase the build time and cost—and the probability of a failed print. A layer height of 100 microns is suitable for most common applications.

Build size: This is another parameter that is important for the designer. The build size depends on the type of SLA machine. There are two main SLA machine setups: the top-down orientation and the bottom-up orientation:

• Top-down printers place the laser source above the tank and the part is built facing upwards. The build platform begins at the very top of the resin vat and moves downwards after every layer.

• Bottom-up printers place the light source under the resin tank (see figure above) and the part is built upside down. The tank has a transparent bottom with a silicone coating that allows the light of the laser to pass through but stops the cured resin from sticking to it. After every layer, the cured resin is detached from the bottom of the tank, as the build platform moves upwards. This is called the peeling step.

The bottom-up orientation is mainly used in desktop printers, like Formlabs, while the top-down is generally used in industrial SLA systems. Bottom-up SLA printers are easier to manufacture and operate, but their build size is limited. This is because the forces applied to the part during the peeling step might cause the print to fail. On the other hand, top-down printers can scale up to very large build sizes without a big loss in accuracy. The advanced capabilities of these systems come at a higher cost.

The following table summarizes the key characteristics and differences between the two orientations:

What are the characteristics of SLA 3D printing?

The main characteristics of SLA 3D printing are the necessary support structure, curling and layer adhesion.

Support structures

A support structure is always required in SLA. Support structures are printed in the same material as the part and must be manually removed after printing. The orientation of the part determines the location and amount of support. It is recommended that the part is oriented so that so visually critical surfaces do not come in contact with the support structures.

Bottom-up and top-down SLA printers use support differently:

• Top-down SLA printers: Support requirements are similar to those for FDM. They are needed to accurately print overhangs and bridges (the critical overhang angle is usually 30o). The part can be oriented in any position, and they are usually printed flat, to minimize the amount of support and the total number of layers.

• Bottom-up SLA printers: Support requirements can be more complex. Overhangs and bridges must still be supported, but minimizing the cross-sectional area of each layer is the most crucial criterion: the forces applied to the part during the peeling step may cause it to detach from the build platform. These forces are proportional to the cross-sectional area of each layer. For this reason, parts are oriented at an angle and the reduction of support is not a primary concern.

Curling

One of the biggest problems relating to the accuracy of parts produced via SLA is curling. Curling is similar to warping in FDM.

During the curing process, the resin shrinks slightly upon exposure to the printer's light source. When the shrinkage is considerable, large internal stresses develop between the new layer and the previously solidified material, which results in the part curling.

Support is important to help anchor at-risk sections of a print to the build plate and mitigate the likelihood of curling. Part orientation and limiting large flat layers are also important. Over-curing (for example by exposing the part to direct sunlight post-printing) might also cause curling.

The best way to prevent curling is to keep it in mind during the design process. Avoid large thin and flat areas wherever possible, or add a structure to prevent the part from curling.

Layer adhesion

SLA-printed parts have isotropic mechanical properties. This is because a single UV laser pass is not enough to fully cure the liquid resin. Later laser passes help previously solidified layers to fuse together to a very high degree. In fact, curing continues even after the completion of the printing process.

To achieve the best mechanical properties, SLA parts must be post-cured, by placing them in a cure box under intense UV light (and sometimes at elevated temperatures). This greatly improves the hardness and temperature resistance of the SLA part but makes it more brittle. The results of the post-curing process mean:

1. Test pieces of parts printed in standard clear resin using a desktop SLA printer have almost twice as much tensile strength post-cure (65 MPa compared to 38 MPa).

2. Parts can operate under load at higher temperatures (at a max temperature of 58ºC compared to 42ºC).

3. The elongation at break is almost half (6.2% compared to 12%).

Leaving the SLA printed part in the sun can also cause curing. Although spray coating with a clear UV acrylic paint before use is highly recommended because extended exposure to UV light has a detrimental effect in the physical properties and appearance of SLA parts—they may curl, become brittle or change color.

Accuracy of SLA printing

SLA is one of the most accurate forms of 3D printing. It can achieve layer resolutions of 25 microns or less, and layer thicknesses as low as 10 microns. Generally, industrial SLA printers are more accurate than desktop machines, with typical dimensional accuracy of ± 0.2%, with a lower limit of ± 0.13 mm (± 0.005").

SLA’s precision enables it to create parts with very tight tolerances, as well as those with intricate details and complex geometries. However, the accuracy of SLA printing depends on several factors, including the following.

• Layer thickness. The thinner your print’s layers, the finer the details of your part can be, contributing to higher accuracy.

• Laser spot size. The diameter of the printer’s laser beam determines the minimum feature size and affects your printer’s precision.

• Material properties. Resin characteristics like viscosity and pigmentation can impact part's dimensional accuracy and surface finish. Resins with low viscosity and high levels of pigmentation usually result in more accurate prints.

• Printing orientation. Parts printed at different orientations may exhibit variations in accuracy due to factors like support structures and resin flow dynamics.

Surface finish

SLA 3D printing can achieve very smooth surface finishes, and is a great choice for creating visual prototypes. This is because the printing process involves curing liquid resin layer by layer with a UV laser, resulting in minimal visible layer lines.

Choosing an SLA resin with low viscosity can further enhance your part’s surface finish. So can post-processing techniques like sanding, polishing, or chemical smoothing. In all, this can result in parts with glossy surface finishes that rival parts created with injection molding.

Summary of the main characteristics of SLA 3D printing

The main characteristics of SLA are summarized in the table below:

What materials are used for SLA printing?

SLA materials come in the form of liquid resins, which can be chosen based on the end use of the part—for example, thermal resistance properties, a smooth surface finish or abrasion resistance. As such, the price of the resin varies greatly, from about $50 per liter for the standard material, upwards to $400 per liter for specialty materials, such as castable or dental resin. Industrial systems offer a wider range of materials than desktop SLA printers, which gives the designer closer control over the mechanical properties of the printed part.

SLA materials (thermosets) are more brittle than the materials produced with FDM or SLS (thermoplastics) and for this reason, SLA parts are not usually used for functional prototypes that will undertake significant loading. Advances in materials may change this in the near future.

The following table summarizes the advantages and disadvantages of the most commonly used resins.

What are the options for SLA post-processing?

SLA parts can be finished to a very high standard using various post-processing methods, such as sanding and polishing, spray coating and finishing with mineral oil. To find out more, read our extensive article on post-processing for SLA parts.

Applications of SLA 3D printing

SLA 3D printing is often used for industrial applications, thanks to its high resolution and ability to create highly detailed or complex parts with tight tolerances. Let’s take a look at a few of the common applications for which our customers create parts with SLA 3D printing.

• Prototyping. SLA is an excellent choice for creating high-quality, visually appealing prototypes for testing a design’s form, fit, and function before mass production begins. Additionally, SLA printing’s speed makes it well-suited to rapidly prototyping during product development.

• Sacrificial patterns. SLA 3D printing is often used to create sacrificial patterns for metal casting tools, molds, and die casting. When the casting material is poured or injected into the mold, the SLA-printed sacrificial pattern is melted, dissolved, or removed.

• Dental. SLA is often used to create dental models, crowns, bridges, and other prosthetics. Dental labs also use SLA printers to create models of patients' teeth so they can create custom dental appliances.

• Medical. Medical technicians use SLA 3D printers to make custom surgical guides, anatomical models, and patient-specific implants, especially for orthopedics and reconstructive surgery.

• Aerospace: Aerospace engineers use SLA 3D printing to create lightweight and intricate components for aircraft and spacecraft – from prototypes to tooling to end-use parts.

• Automotive. Automotive manufacturers use SLA 3D printing for rapid prototyping of vehicle components, including interior panels, engine parts, and prototype models.

• Consumer electronics. You can use SLA to create small electronic components, casings, and prototypes for consumer electronics devices.

What's the difference between desktop (prototyping) and industrial SLA 3D printers?

The two main types of SLA systems are desktop (prototyping) and industrial printers. Industrial SLA machines can produce more accurate components than their desktop counterparts (and maintain better accuracy over larger builds), and often make use of higher-cost materials. While desktop SLA can achieve tolerances between 150 and 300 microns, industrial printers are capable of tolerances as low as 30 microns for nearly any build size.

One of the biggest advantages of industrial SLA over desktop machines is the range of resin materials that industrial printers are able to print with. While desktop printers may use a flexible resin, industrial machines offer a large range of flexible resins each with varying mechanical properties.

One of the limitations of most industrial machines is that they produce parts using a top-down approach resulting in the need for large resin tanks (over 100L). This makes swapping between materials difficult and can increase lead time on parts. This also makes these machines more expensive to maintain.

For designs where cosmetic appearance is more important than function, desktop printers are generally adequate. If engineering properties like temperature resistance, castability and transparency are required, then industrial properties offer a greater range of solutions.

Compared to desktop printers, industrial machines are designed for repeatability and reliability. They can often produce the same part over and over again and do not need the high level of user interaction that desktop machines typically require.

Overall, SLA’s unique ability to batch produce intricate, customized parts makes it a popular method of manufacturing small parts, low-run production.

What are the advantages of SLA 3D printing?

The following are the main advantages of SLA 3D printing.

• High dimensional accuracy. SLA can produce parts with very high dimensional accuracy and intricate details.

• Smooth surface finish. SLA parts have a very smooth surface finish, making them ideal for visual prototypes.

• Material choice. Specialty SLA materials are available, such as clear, flexible and castable resins.

• Speed. SLA printing is the fastest form of 3D printing, making the technology well-suited to rapid prototyping and small-batch production.

• Minimal warping or shrinkage. Unlike other 3D printing methods, SLA-printed parts usually typically exhibit minimal warping or shrinkage while printing, resulting in high degrees of dimensional accuracy.

• Minimal waste. SLA printers use liquid resin efficiently – and leftover resin can often be reused – resulting in minimal material waste.

• High resolution. SLA technology maintains high resolution consistently across the entire build volume, enabling uniform quality throughout large prints.

What are the disadvantages of SLA 3D printing?

The following are a few of the drawbacks of SLA 3D printing.

• Brittleness. SLA parts are generally brittle and not suitable for functional prototypes.

• UV degradation. The mechanical properties and visual appearance of SLA parts will degrade over time when the parts are exposed to sunlight.

• Support structures. Support structures are always required and post-processing is necessary to remove the visual marks left on the SLA part.

• Limited build volume. SLA printers tend to have smaller build volumes than other types of 3D printers. This limits the size of parts you can create in a single print.

• Material handling. SLA resins can be tricky (and messy) to work with. They may also require special handling procedures, such as proper ventilation, due to potential resin toxicity.

• Post-curing. After printing, SLA parts usually need to be post-cured in UV light to ensure optimal material properties. This can make lead times longer – and add complexity to the printing process, potentially resulting in higher costs.

• Limited functionality. There are a variety of resins that you can choose from for SLA 3D printing, but your options for creating functional parts with specific mechanical properties may be more limited compared to technologies like FDM or SLS 3D printing.

Top tips & tricks for SLA 3D printing

Is SLA 3D printing the right manufacturing solution for your parts or products? These are our rules of thumb:

• SLA 3D printing is best suited for producing visual prototypes with very smooth surfaces and very fine details from a range of thermoset materials.

• Desktop SLA is ideal for manufacturing small injection molded-like parts at an affordable price. Think "smaller-than-a-fist".

• Industrial SLA printing machines can produce very large parts, as big as 1500 x 750 x 500mm.


Want to find out more? Read our complete guide to 3D printing or speak with a Protolabs Network engineer by contacting networksales@protolabs.com.
